mercoledì 29 dicembre 2010

COLLECTION UPDATE - Dreamcast


Aggiornamento natalizio della mia collezione Dreamcast.
Piccolo ma importante.
Come hardware ho recuperato una Memory 4X nuova completa di tutto.
Come software invece ho recuperato Street fighter 3rd strike per arricchire la mia collezione di picchiaduro 2d capcom e Bangaioh per arricchire la collezione shmups!
Entrambi sono completi di spine card.

Christmas update of my Dreamcast collection.
Little but important!
About the hardware I've bought a new, boxed and complete 4X memory.
About the software I've bought street fighter 3rd strike for my 2d capcom fighting game collection and Bangaioh for my shmups dreamcast collection.
Both are complete of their spine card.






Aggiornamento Software & hardware

;)

venerdì 17 dicembre 2010

NES - 72pin connector replacement & board cleaning VIDEO

NES blinking problem VIDEO in English


Ciao a tutti....
Dopo il tutorial scritto qui sul blog qualche giorno fà ecco anche il video sulla sostituzione della connettore 72 pin e della pulizia del connettore che ho messo su youtube, le spiegazioni sono in un inglese molto primitivo, ma scusate, è il meglio che posso fare :)

Hello to everybody....
After the tutorial written here on the blog a few days ago here there is the video about the 72pin connector replacing and board connector cleaning that I put on youtube, the explanations are in a very primitive English, but sorry me, it's the best I can do :)




;)



martedì 7 dicembre 2010

NES - 72pin connector replacement & board cleaning

Stop Blinking!!!!!


Il Nes è una console storica e a mio avviso fantastica!
Io lo uso tutt'oggi nonostante abbia praticamente la mia età, e non mi ha mai tradito...
L'unica cosa che capita sporadicamente è il fenomeno del blinking...cioè che vi lampeggia la lucina rossa all'accensione e che quindi non vi partono i giochi.
La soluzione consiste nel sostiruire il connettore a 72 pin perchè un pò con la sporcizia e un pò con il tempo si ossida innescando malfunzionamenti nella lettura della cartuccia inserita.
Qui di seguito proverò ad illustrarvi con una piccola guida come sostituire il connettore 72 pin con uno nuovo (facilmente reperibili sulla baia ;)) e anche come pulire il connettore sulla scheda madre (se sostituite solo il connettore 72 pin fate un lavoro a metà ;) ).

The NES console is a fantastic historical and in my opinion!
I use it so far despite having almost my age, and I have never betrayed ...
The only thing that happens occasionally is the blinking problem.
The solution is to excange the old 72-pin connector with one new beacuse the old connector is dirty and maybe a bit oxidizes triggering malfunctions in the reading of the cartridge inserted.
Below I will try to explain with a little guide how to replace the 72-pin connector with one new (you can found it easily on ebay;)) and also how to clean the connector on the motherboard (if you replace the 72 pin connector only you'll do just an half job; )).


Gli oggetti necessari per questa piccola riparazione sono davvero pochi:
The necessary objects for this small repairs are very few:

- Connettore 72 pin nuovo (72 pins connector replacement)
- Cacciavite a stella (screwdriver)
- Spray apposito per contatti elettrici (electronic cleaner spray)
- Panno che non lasci peluzzi appropiate cleaning drape

ATTENZIONE: La sostituzione del connettore a 72 pin è molto semplice e veloce e non richiede lo smontaggio della scheda madre del NES.
Ritengo però utile una volta che si sostituisce il connettore a 72 pin con uno nuovo, pulire accuratamente anche il connettore presente sulla scheda madre e per questo motivo, nel tutorial, ho illustrato anche come smontare la scheda per agevolare le operazioni di pulizia durante la sostituzione del connettore 72pin.

CAUTION: The replacement of the 72-pin connector is very simple and fast and does not require dismantling of the NES motherboard.
But I do feel good once you replace the 72-pin connector with a new, clean also the connector on the motherboard and that is why, in the tutorial, I also explained how to disassemble the motherboard from the console to facilitate cleaning when changing the 72pin connector.



PASSO 1

Operando sul lato inferiore del Nes, svitare e togliere le sei viti di fissaggio indicate in figura.
Working from the bottom of the Nes, unscrew and remove the six screws shown in the figure.


PASSO 2

Separare la base dal coperchio superiore e appoggiarla su un piano per agevolare le operazioni.
Separate base and top cover and place the base on a plan to facilitate the operations.


PASSO 3

Svitare e togliere le sette viti di fissaggio indicate in figura.
Unscrew and remove the seven screws shown in the figure.


PASSO 4

Rimuovere il coperchio.
Remove the cover.


PASSO 5

Operando su entrambi i lati, svitare e togliere le tre viti di fissaggio (due corte ed una lunga per lato).
Working on both sides, unscrew and remove the three screws (two short and one long per side).



PASSO 6

Sfilare il carrello cartuccia
Remove the cartridge tray.


PASSO 7

Svitare e togliere le due viti di fissaggio indicate in figura.
Unscrew and remove the two screws shown in the figure.


PASSO 8

Sollevare e ribaltare la scheda madre e scollegare i connettori indicati in figura.

Lift and turn the motherboard and disconnect the connectors indicated in the figure.




PASSO 9

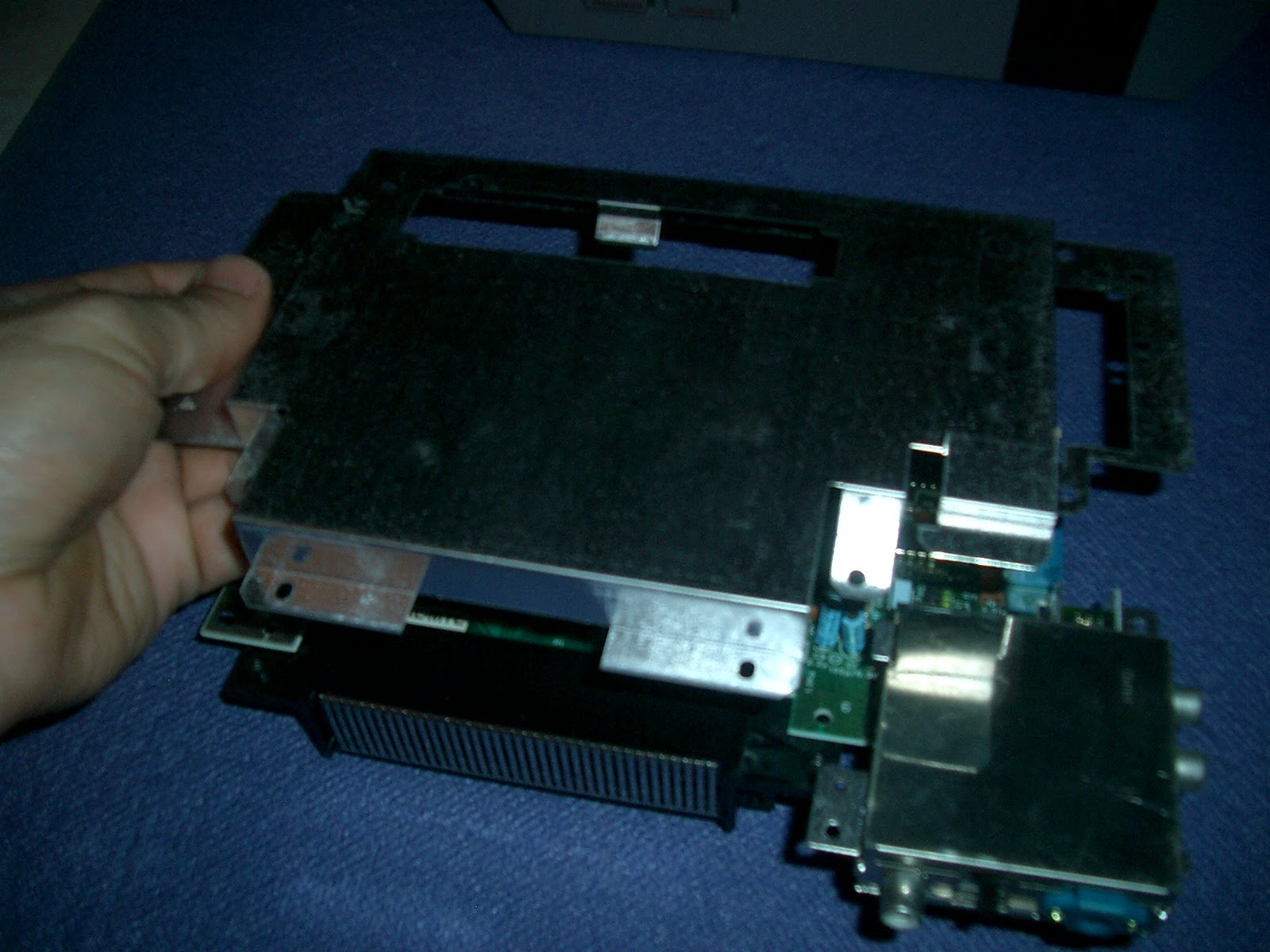

Sfilare il telaietto inferiore per accedere agevolemente al connettore 72 pin.
Remove the lower frame for an easy access to 72-pin connector.



PASSO 10

Sfilare il connettore 72 pin.
Remove the 72 pin connector.



PASSO 11

Molto probabilmente il connettore della scheda madre sarà ossidato o sporco.
Probably the connector on the motherboard will be oxidized or dirty.


PASSO 12

Pulire, con delicatezza senza rovinare i contatti, utilizzando un panno appropiato che non lasci residui e lo spray apposito per contatti (silicon spray), il connettore della scheda madre fino ad ottenere un risultato simile a quello mostrato in figura.
Clean, gently, without damaging the contacts, using an appropiate cleaning drape and a specific electronic cleaning spray the connector on the motherboard to obtain a result similar to that shown.


PASSO 13

Prendere il connetore 72 pin nuovo.
Take the new 72-pin Connector.


PASSO 14

Inserire il nuovo connettore 72 pin sulla scheda madre.
Insert the new 72-pin connector on the motherboard.


PASSO 15

Posizionare il telaietto inferiore.
Place the bottom frame.



PASSO 16

Collegare i connettori precedentemente scollegati.
Connect the connectors were disconnected.


PASSO 17

Ribaltare la scheda madre ed inserirla in sede, come mostrato in figura.
Turn over the motherboard and put it in place, as shown in the figure.


PASSO 18

Serrare le due viti di fissaggio indicate in figura.
Tighten the two screws shown in figure.


PASSO 19

Inserire il carrello cartuccia nel connettore 72 pin e incastrare il labbro inferiore del carrello sotto la scheda madre.
Insert the tray into the new 72-pin connector and make attention to snap the lower lip of the tray under the motherboard.


PASSO 20

Operando su entrambi i lati avvitare moderatamente le tre viti di fissaggio indicate in figura, ricordandosi delle diverse lunghezze delle viti.
Man mano che si avvita provare il meccanismo del carrello cartuccia e serrare fino a quando si ottiene un perfetto funzionamento di incastro del carrello.
Working on both sides moderately screw the three screws shown in the figure, mindful of the different lengths of screws.
try the mechanism of the tray and continue to screw until you get a perfect joint operation of the tray mechanism.




PASSO 21

Posizionare il coperchietto superiore.
Position the upper cover.


PASSO 22

Serrare le sette viti di fissaggio coperchietto indicate in figura.
Tighten the seven cover mounting screws shown in the figure.


PASSO 23

Posizionare la base inferiore completa sul coperchio console.
Place the base on the console cover.


PASSO 24

Serrare le sei viti indicate in figura
Tighten the six screws shown in figure



;)

giovedì 2 dicembre 2010

XBOX - JET SET RADIO FUTURE

Funky videoludico su xbox



Dedico questo post al successore di uno dei giochi più innovativi che uscirono sul Dreamcast: Jet set radio.
Il seguito di cui parleremo fù rilasciato da Sega nel 2002 in esclusiva su Xbox con il nome di Jet set radio future.
Il gioco fù sviluppato da Smilebit e divenne subito uno dei simboli del massiccio supporto che sega diede alla console microsoft tanto da essere venduto anche in bundle con la console assieme a Sega GT 2002.
Dico subito che non ci sono grandi rivoluzioni rispetto al primo titolo uscito su Dreamcast se non per l’aspetto tecnico (sia audio che video) un po’ migliorato grazie anche all’hardware della scatola nera microsoft.
Come nel primo episodio, la grafica era caratterizzata da un cel/shading estremamente “funky” che si accoppiava divinamente con la curatissima colonna sonora.
La giocabilità rimane bene o male la stessa, con il nostro personaggio che lotta con la polizia contro ogni impedimento alla libertà di espressione e contro le altre gang rivali in vari contesti ed ambienti.
Ci sono infatti vari personaggi con cui interagire e molte zone della futuristica Tokyo in cui dovremo aggirare ostacoli con salti e acrobazie varie, ovviamente, sempre armati di bomboletta spray per i graffiti!
Alcune volte ammetto che non badavo molto alla missione, ma vagavo in giro senza uno scopo per gustarmi la colonna sonora veramente d’impatto e orecchiabile, soprattutto per un appassionato della musica elettronica come me!
Consiglio questo titolo a tutti quelli che hanno amato il predecessore e a tutti quelli che hanno voglia di provare un titolo/una saga un po’ fuori dal coro, pensando anche che ai tempi in cui usci, con jet set radio prima, e col future poi, portò uno stile tutto nuovo, originalissimo, immediato e coinvolgente.
Posso sicuramente dire che è uno di quei titoli per cui vale la pena avere un’xbox primo modello visto che è stato rilasciato in esclusiva per questa console.
E se magari potete, provate anche il primo capitolo sulla magnifica Dreamcast (prima o poi dedicherò un post anche al primo capitolo ;) ).
Un Funky electro ciao a tutti!


I dedicate this post to the successor of one of the most innovative games that came out on Dreamcast: Jet Set Radio.
The following was released by Sega exclusively on Xbox in 2002 under the name of Jet Set Radio Future.
The game was developed by Smilebit and immediately became a symbol of the massive support they gave to the microsoft console, enough to be sold in a bundle with the console along with Sega GT 2002.
I must say that there are no great revolutions from the first title released on Dreamcast if not for the technical aspect (both audio and video) a little 'thanks to the improved hardware of the black box of MS.
As in the first episode, the graphic was characterized by a very “funky” cell / shading which is coupled with the well-kept divinely soundtrack.
The gameplay remains the same, with our character that fights with the police against any obstacle to freedom of expression and against the other rival gangs in different contexts and environments.
Indeed, there are various characters to interact with the futuristic Tokyo and many areas in which we work around obstacles with various jumps and stunts, and of course, always armed with spray paint!
Sometimes I admit that I wasn’t interested about the mission, but I wandered around aimlessly for enjoying the music that it is very catchy and impact, especially for a fan of electronic music like me!
I recommend this title to all those who loved its predecessor and all those who want to try a title / saga a bit 'outside the box, thinking that even in the days when doors, with jet set radio first, and then with the future brought a whole new style, original, immediate and engaging.
I can definitely say it's one of those titles that is requiring to have an old xbox on our collection since it was released exclusively for this console.
If you can, try also the first great chapter on Dreamcast (sooner or later I will devote a chapter to the first post too;)).
A Funky electro Hello to everyone!
